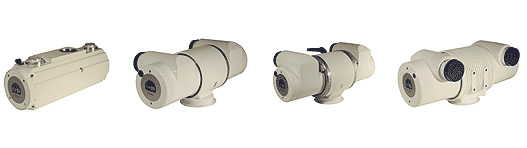

iae-carcasas
CARCASA VOLTAJE (kJ) (kHU) MAXIMA VELOCIDAD DE ENFRIAMIENTO MAXIMA VELOCIDAD DE VENTILACIÓN PESO NETO DATOS TÉCNICOS
C30 125kV 500 kj 670 kHU 140 W (11200 HU/min) with HE30-500 W (40000 HU/min) 15 kg
C31 150kV 500 kj 670 kHU 120 W (9600 HU/min) 15 kg C31 DATA
C32 125kV 500 kj 670 kHU with HE30-1000 W (80000 HU/min) with HE31-1200 W (96000 HU/min) 15 kg C32 DATA
C33 125kV 500 kj 670 kHU 1000/1200 W 16 kg
C40 150kV 900 kj 1250 kHU 180 W (14400 HU/min) 16 kg C40 DATA
C52 150kV 1280 kj 1700 kHU 230 W (18400 HU/min) 370 W (29600 HU/min 21 kg C52 DATA
C352 150kV 1280 kj 1700 kHU 230 W (18400 HU/min) 370 W (29600 HU/min 20 kg C352 DATA
C52 Super 150kV 1280 kj 1700 kHU 230 W (18400 HU/min) 370 W (29600 HU/min 26 kg C52 SUPER DATA
C100 150kV 1500 kj 2000 kHU 250 W (20000 HU/min) 600 W (48000 HU/min) 25 kg C100 DATA
C100 XT 150kV 1800 kj 2400 kHU 1100 W (88000 HU/min) 29 kg C100 XT DATA
C100 XS 150kV 3500 kj 4660 kHU 1100 W (88000 HU/min) 31 kg C100 XS DATA
C339 C 49 kV 375 kj 500 kHU 80 W (6400 HU/min) 13 kg C339 C DATA
C339 E 49 kV 375 kj 500 kHU 80 W (6400 HU/min) 13 kg C339E DATA
C339 V 49 kV 375 kj 500 kHU 80 W (6400 HU/min) 13 kg C339 V DATA
C340 V 49 kV 375 kj 426 kHU 800 W (64000 HU/min) with HE30 16 kg C340 V DATA
C341 V 49 kV 520 kj 700 kHU 1500 W (120000 HU/min) with HE31 20 kg C341 V DATA
XK 1016 T 49 kV 225 kj 300 kHU 715 W (57200 HU / min) 5.5 kg
